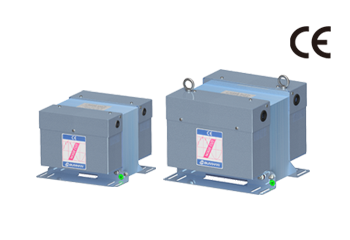

BHNCT-HS Series 1Ø Noise Cut Transformers (단상 NCT, 단자커버형)
본문
- Technical Specifications
- Primary Voltage : 208V / 220V / 230V
- Secondary Voltage : 208V / 220V / 230V
- Operating Frequency : 50/60Hz
- Insulation Class : H Class
- Standard : EN61558-2-4
※ 1MHz → Over -80dB
- Typical Applications
- Semi-conductor manufacture, Display power equipment
- Broadcasting audio-visual devices, Medical devices
- Controller systems(PLC, Robot, DCS etc.)
- Rail network, Subway to surge influence
- Transportation network signal control etc.
